S Series
Affordable, eye-friendly, and clear display for daily work, study, and entertainment.
Consult immediately
Product Features
Low Bluelight
Professional color gamut 90% DCI-P3
Stand design for quick release
Flicker free
Black & White Color Optional
FHD100/120/144Hz，QHD100/120/144Hz
21.5"/23.8"//27"Size
Product Display
21.5inch
23.8inch
27inch

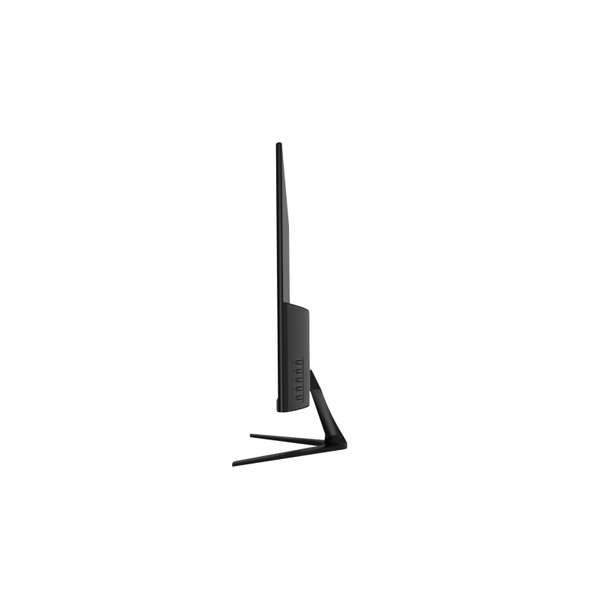

11395969561772fa6-1

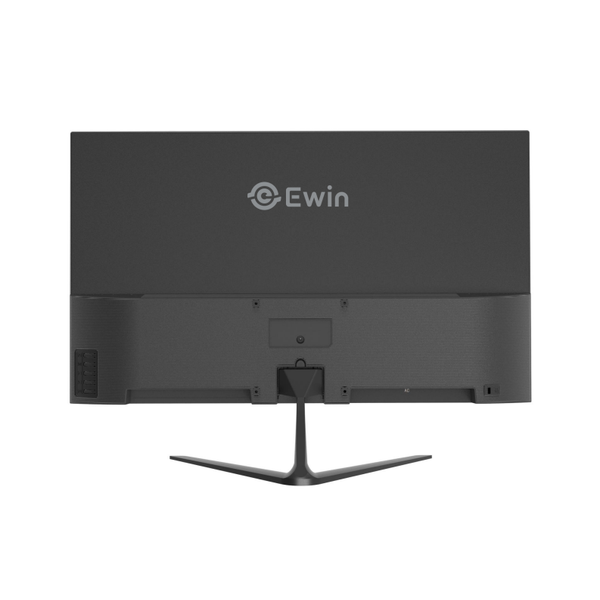

1139599422d41d7ad-0

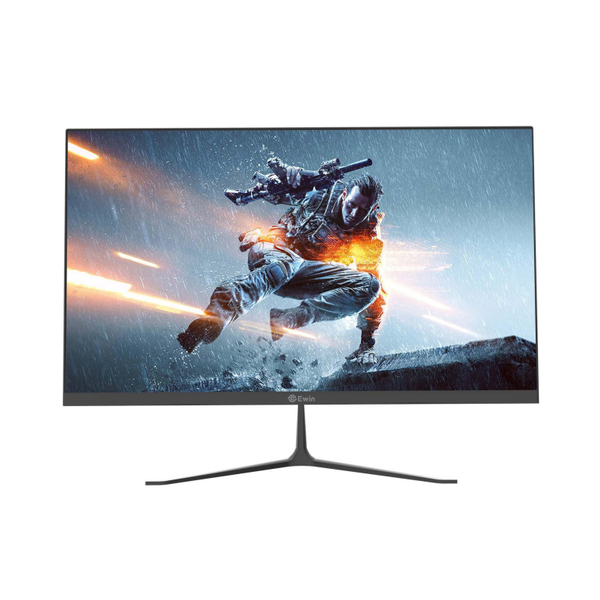

1140019465ab2b3b-e

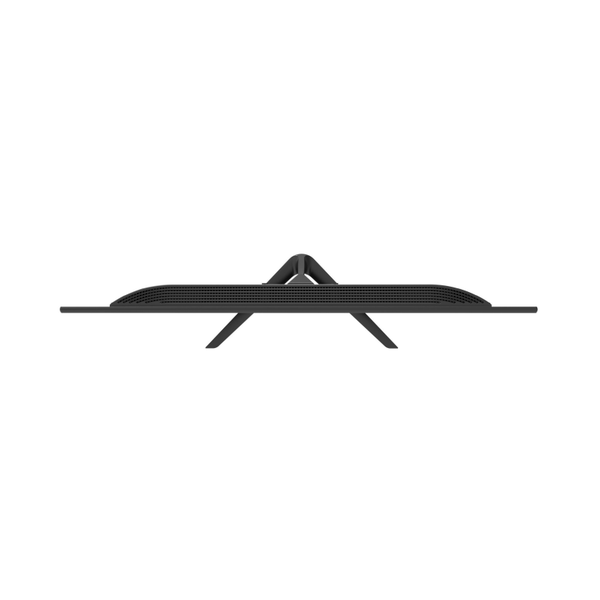

113959695b26a384a-c

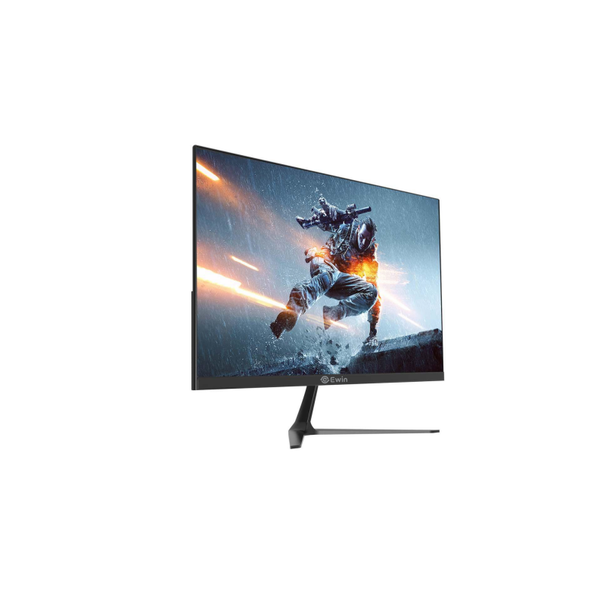

1139599422ced1e30-6

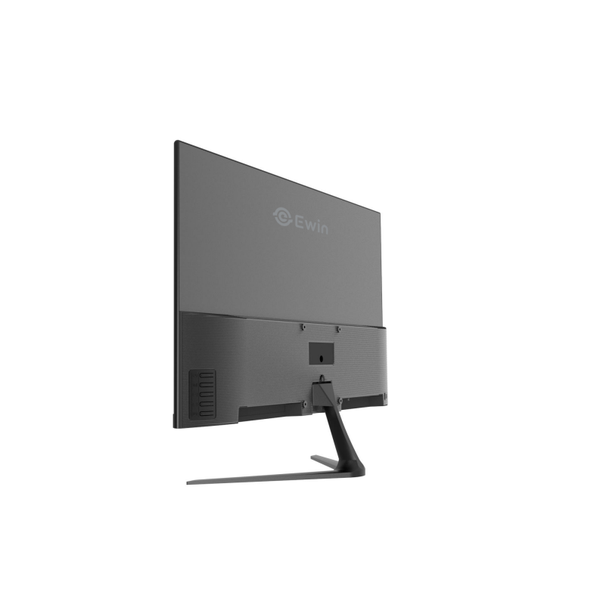

113959695f83b2e45-8
11395969561772fa6-1
1139599422d41d7ad-0
1140019465ab2b3b-e
113959695b26a384a-c
1139599422ced1e30-6
113959695f83b2e45-8
S Seires Entry level monitor
• HDMI digital display and analog inputs VGA（DP optional）
• Automatic wake-up function when signal in
• Blue light filter LED backlight with a wide viewing angle
• Quick disassembly base
• Includes an adapter, HDMI cable, and other accessories

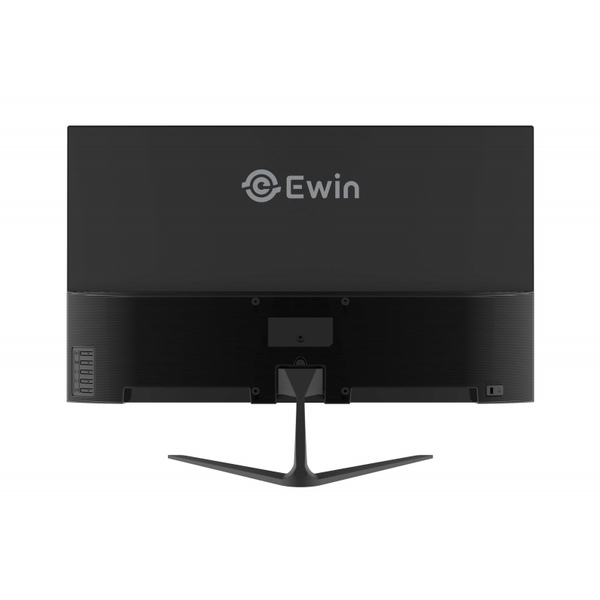

1139409318fd70a27-8

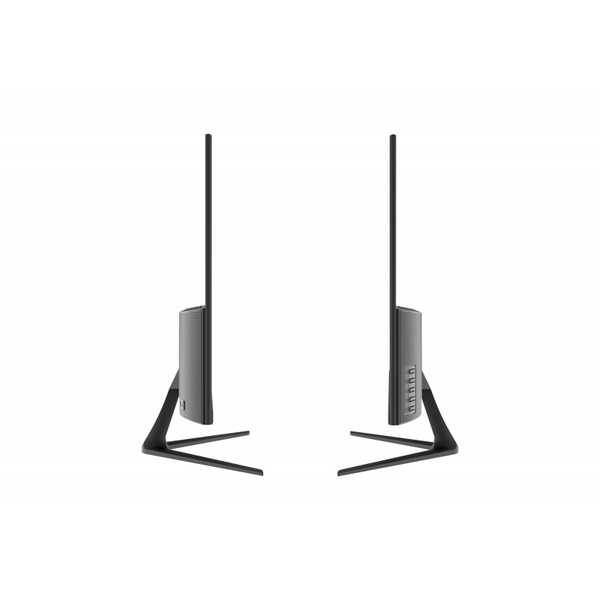

113941182c27e4c55-6

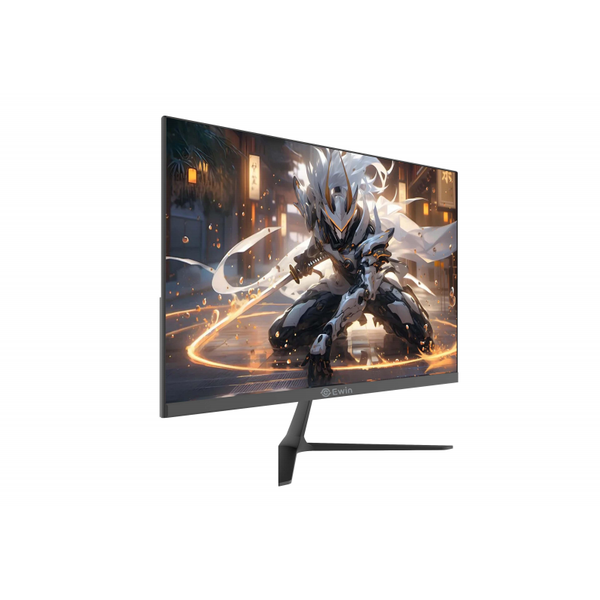

113941424feec0ac4-b

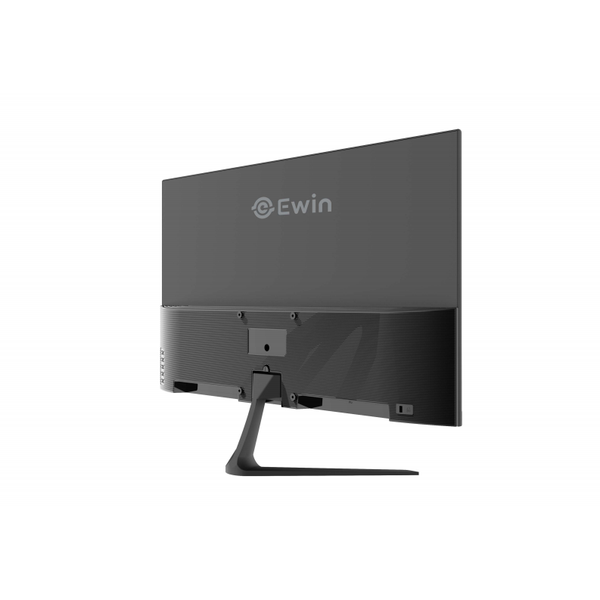

1139409312a2e69ce-4

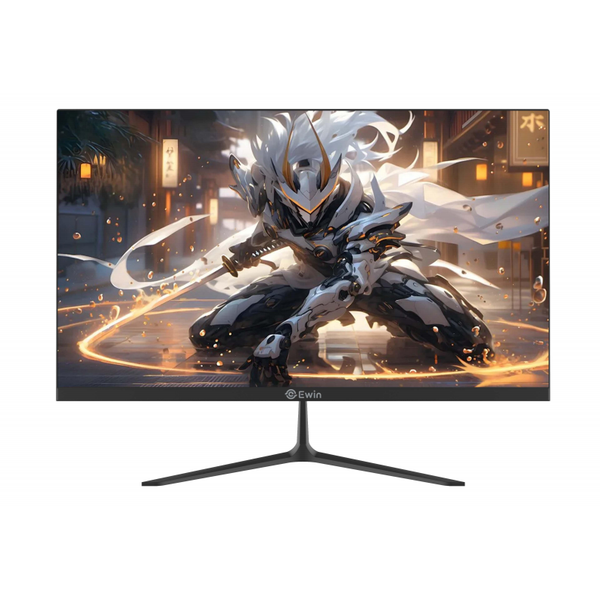

113941424e2868cf0-3

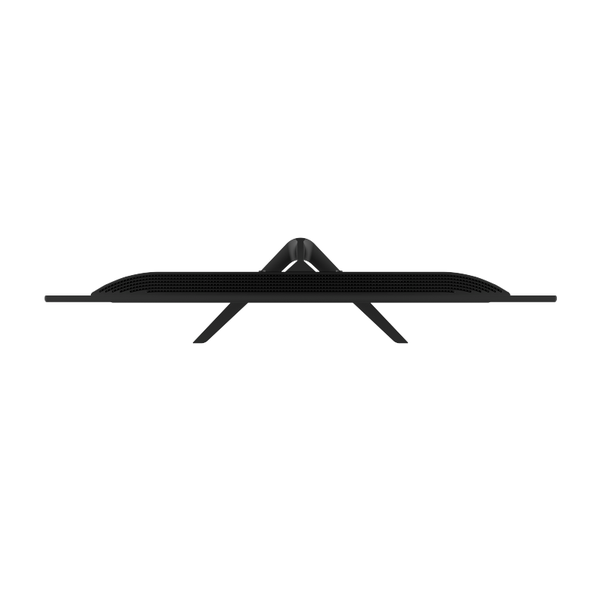

1139409315c368884-6
1139409318fd70a27-8
113941182c27e4c55-6
113941424feec0ac4-b
1139409312a2e69ce-4
113941424e2868cf0-3
1139409315c368884-6
S Seires Entry level monitor
• HDMI digital display and analog inputs VGA（DP optional）
• Automatic wake-up function when signal in
• Blue light filter LED backlight with a wide viewing angle
• Quick disassembly base
• Includes an adapter, HDMI cable, and other accessories

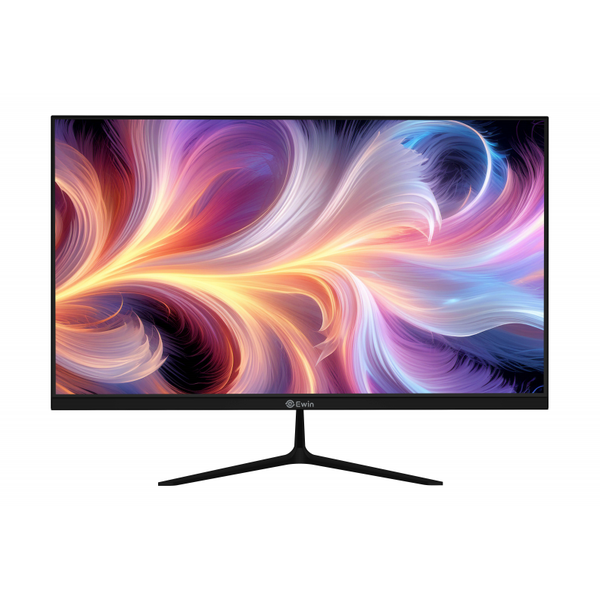

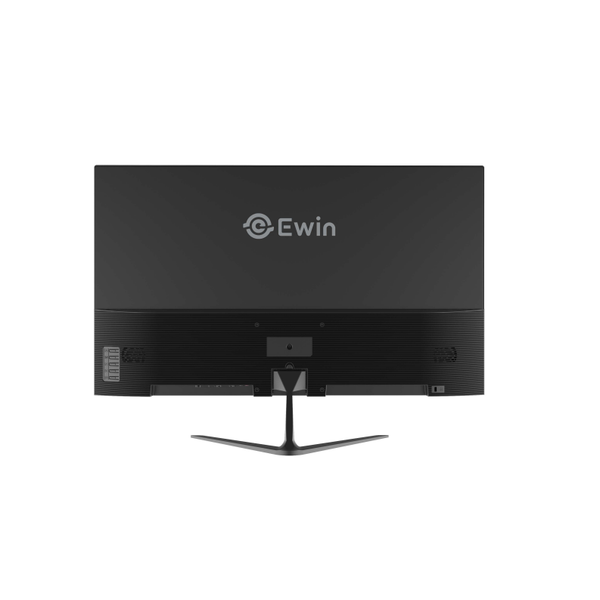

113920680df023521-c

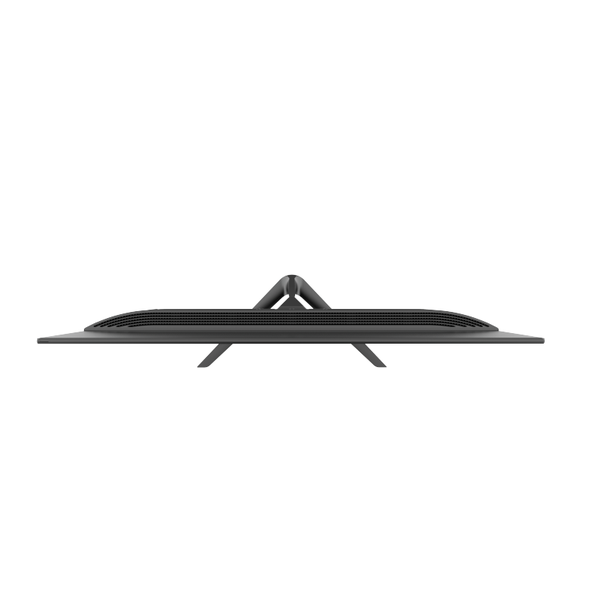

1139209269d0b7431-8

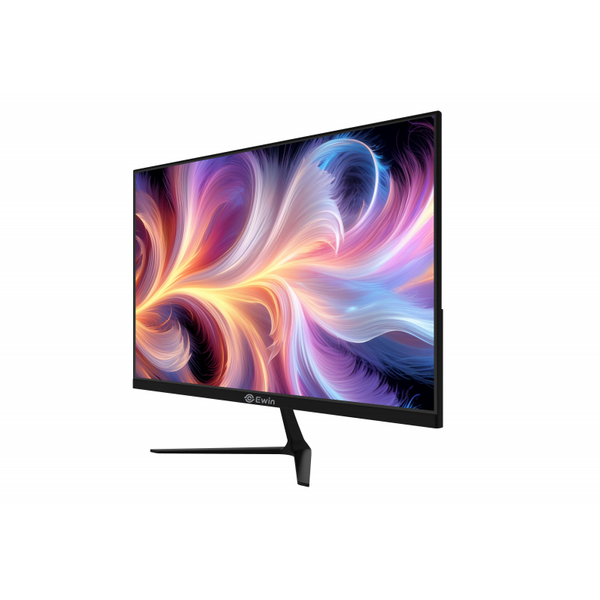

1139211616b31b4fa-e

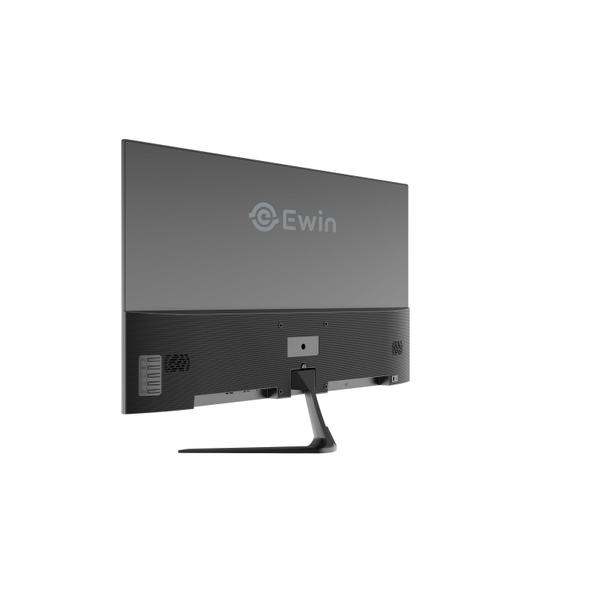

113920680b949c747-3
113921177f7021d39-b

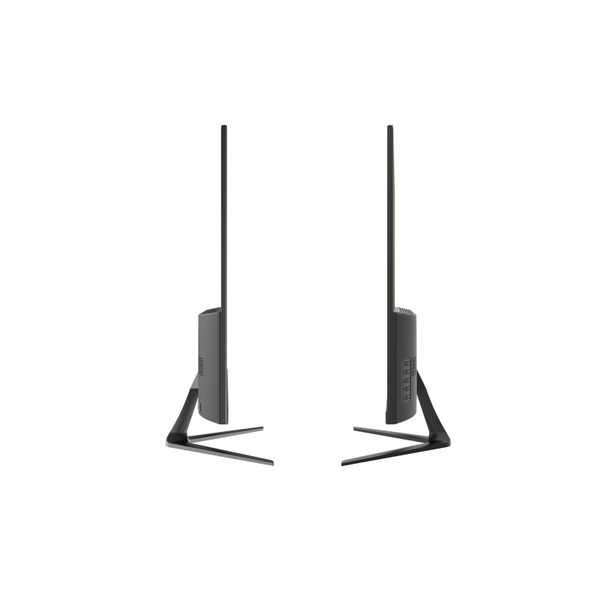

113920680a1cab28b-d
113920680df023521-c
1139209269d0b7431-8
1139211616b31b4fa-e
113920680b949c747-3
113921177f7021d39-b
113920680a1cab28b-d
S Seires Entry level monitor
• HDMI digital display and analog inputs VGA（DP optional）
• Automatic wake-up function when signal in
• Blue light filter LED backlight with a wide viewing angle
• Quick disassembly base
• Includes an adapter, HDMI cable, and other accessories
Product Parameters
Diplay
Screen Size (Diagonal)
478.656(H) ×260.28(V)
Native Resolution
1920(H) ×1080(V)
LCD Tech
VA
Brightness
250nit(Typ.)
Aspect Ratio
16:9
Viewing Angle
89/89/89/89
Contrast Ratio
3000:1
Display Color
16.7M
Response Time
7ms
Operation Time (Hour/Day)
24/7
Surface Treatment
25% haze
Interface & Power
HDMI In
*1
VGA In
*1
Power supply
12V 2A
Power consumption
≤22W
Power consumption(Stand by)
≤0.5W
Physical
Color
Black
Set Outline Dimension (W×H×D)
493.56×362.4×161.2mm
Package Dimension(W×H×D)
544×350×93mm
Set Weight
2.16kg
Packed Weight
2.92kg
VESA Mounting
100×100mm
Product Parameters
Diplay
Screen Size (Diagonal)
527.04(H) ×296.46(V)
Native Resolution
1920(H) ×1080(V)
LCD Tech
VA
Brightness
250nit(Typ.)
Aspect Ratio
16:9
Viewing Angle
89/89/89/89
Contrast Ratio
3000:1
Display Color
16.7M
Response Time
7ms
Operation Time (Hour/Day)
24/7
Surface Treatment
25% haze
Interface & Power
HDMI In
*1
VGA In
*1
Power supply
12V 2.5A
Power consumption
≤28W
Power consumption(Stand by)
≤0.5W
Physical
Color
Black
Set Outline Dimension (W×H×D)
539.9×368×161.2mm
Package Dimension(W×H×D)
598×390×103mm
Set Weight
2.78kg
Packed Weight
3.55kg
Product Parameters
Diplay
Screen Size (Diagonal)
597.89(H) ×336.31(V)
Native Resolution
1920(H) ×1080(V)
LCD Tech
VA/IPS
Brightness
250nit(Typ.)
Aspect Ratio
16:9
Viewing Angle
89/89/89/89
Contrast Ratio
3000:1/1000:1
Display Color
16.7M
Response Time
7ms
Operation Time (Hour/Day)
24/7
Surface Treatment
25% haze
Interface & Power
HDMI In
*1
VGA In
*1
DP In
*1(Optional)
Power supply
12V 3.0A
Power consumption
≤32W
Power consumption(Stand by)
≤0.5W
Physical
Color
Black
Set Outline Dimension (W×H×D)
613.5×441.1×161.2mm
Package Dimension(W×H×D)
675×431×112mm
Set Weight
3.39kg
Packed Weight
4.38kg
VESA Mounting
100×100mm
