TM-A Series
Preinstalled with highly practical applications and specially designed writing functions, making it the perfect assistant for both teaching and meetings.
Product Features
Product Display
24050612598876e4-f
24049332912fd9e6-3
2404935048566a0f-0
24049268f19672b6-0
24049446d7d4b338-d
2404924942ef34dd-3
24050612598876e4-f
24049332912fd9e6-3
2404935048566a0f-0
24049268f19672b6-0
24049446d7d4b338-d
2404924942ef34dd-3

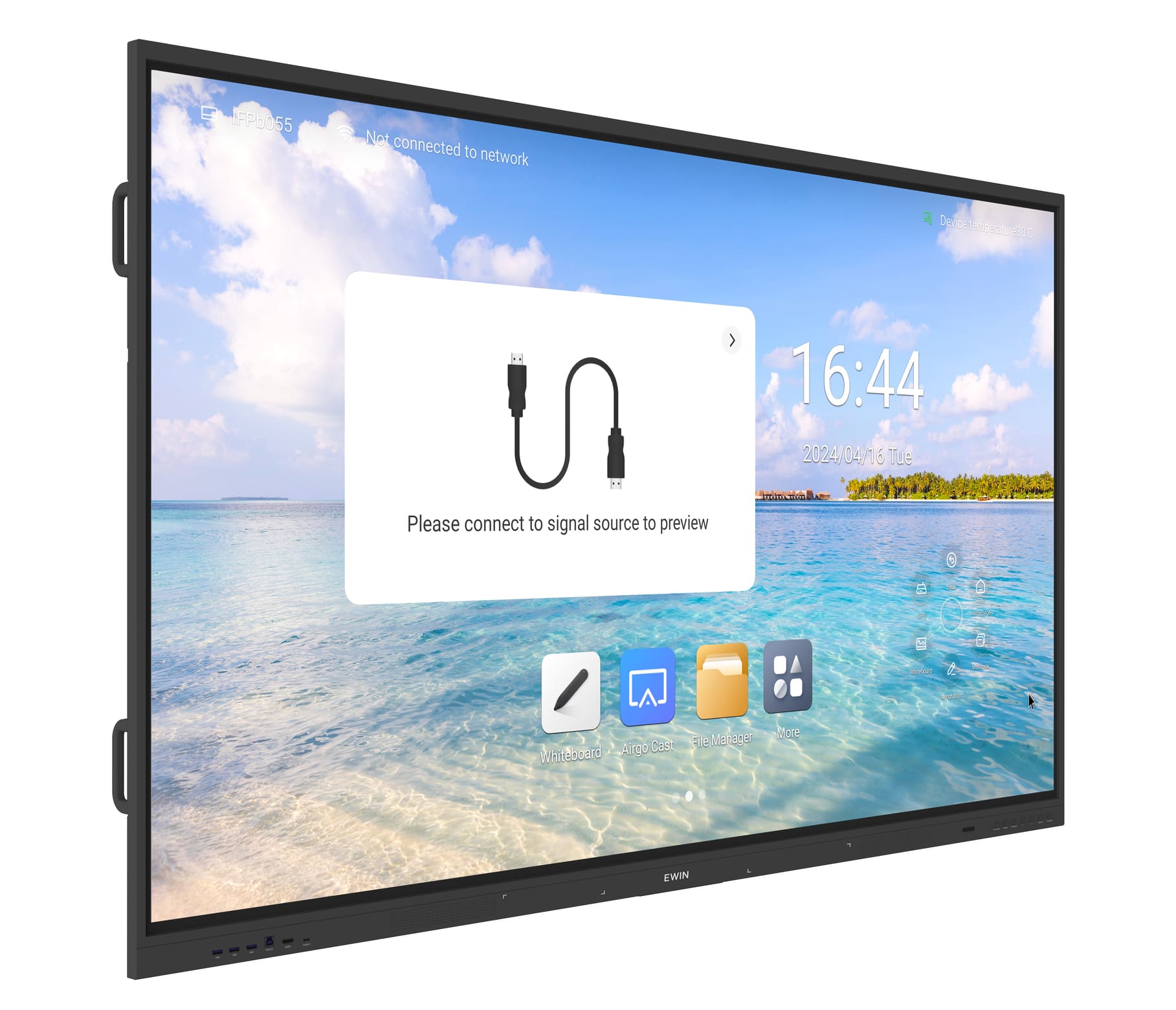

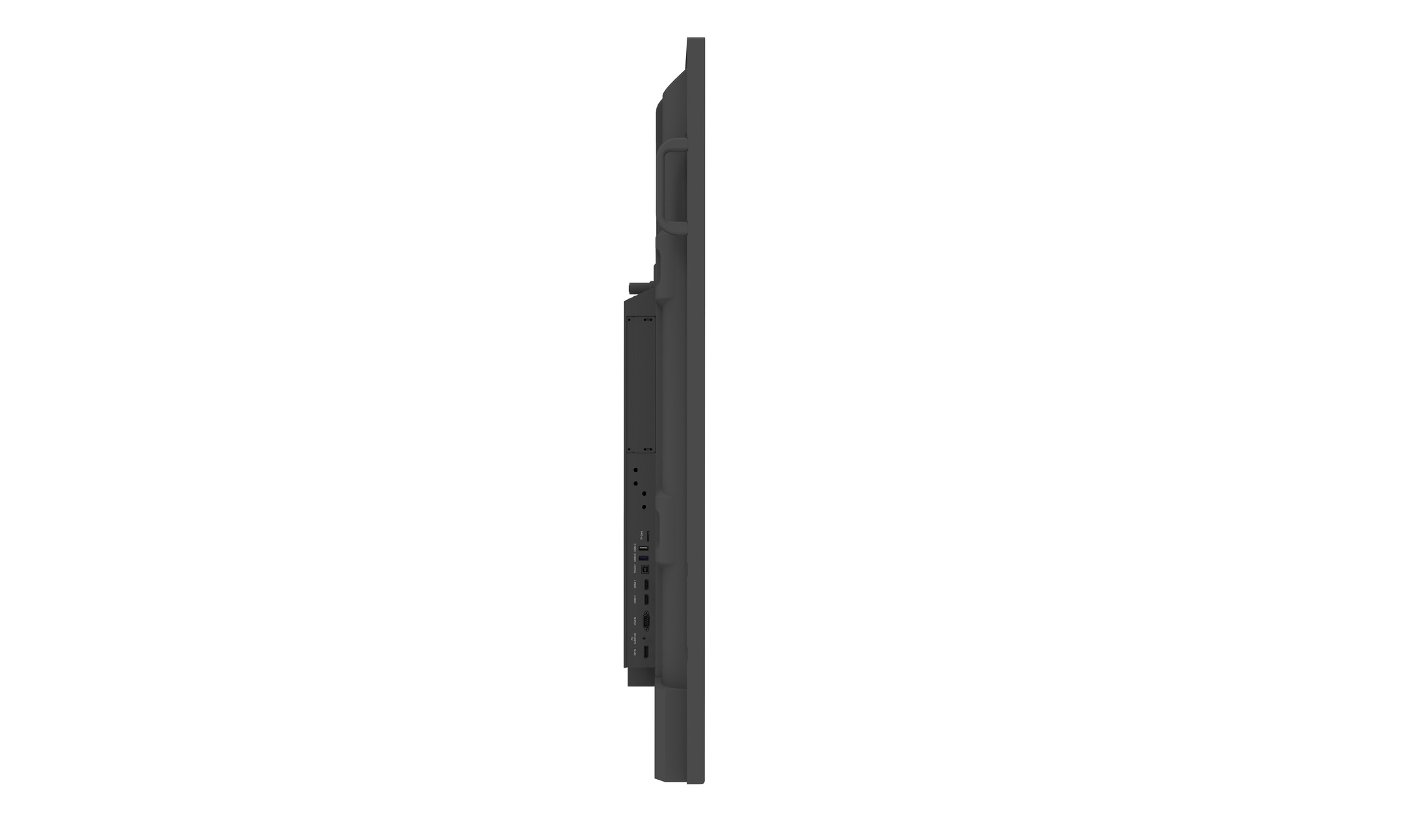

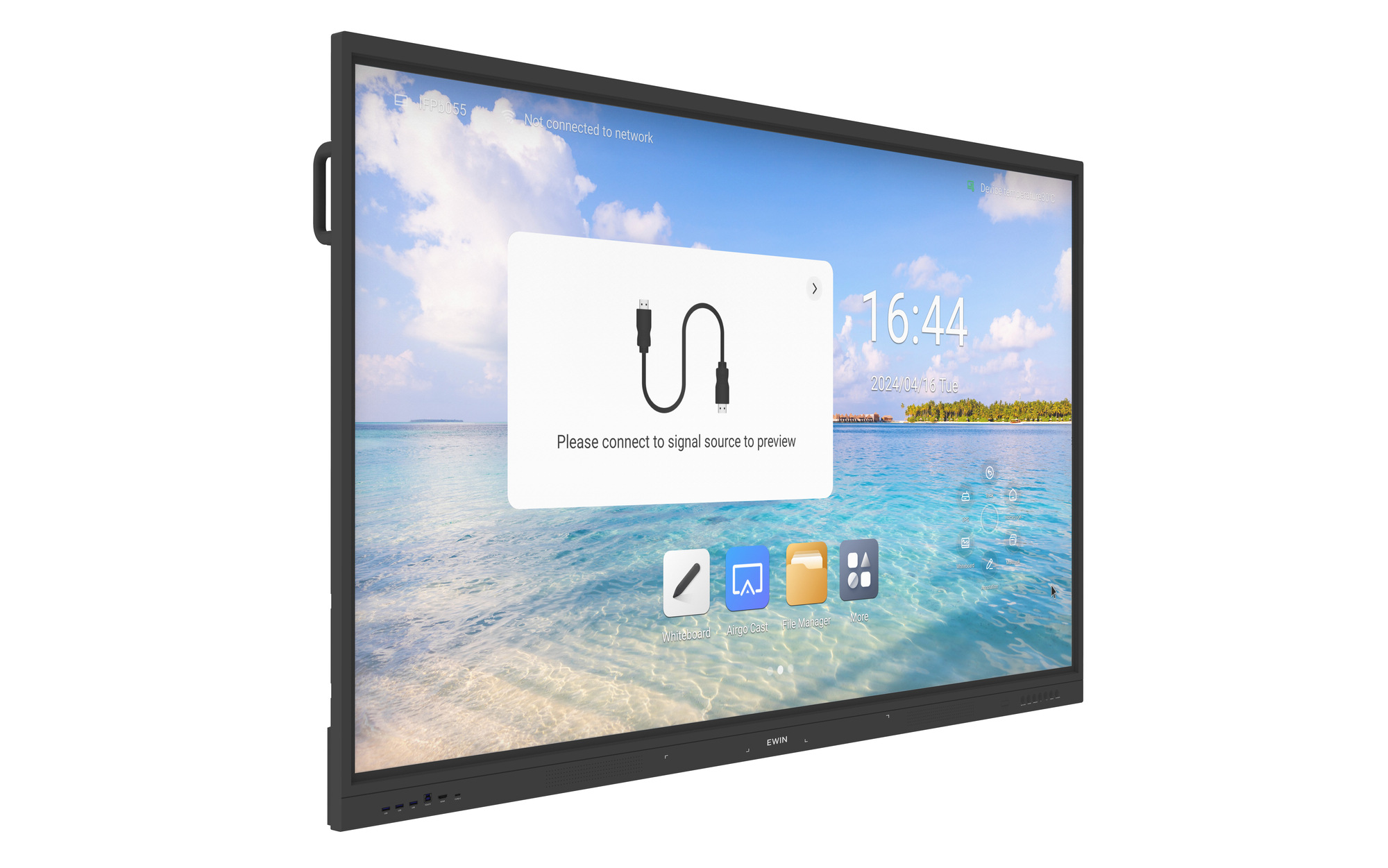

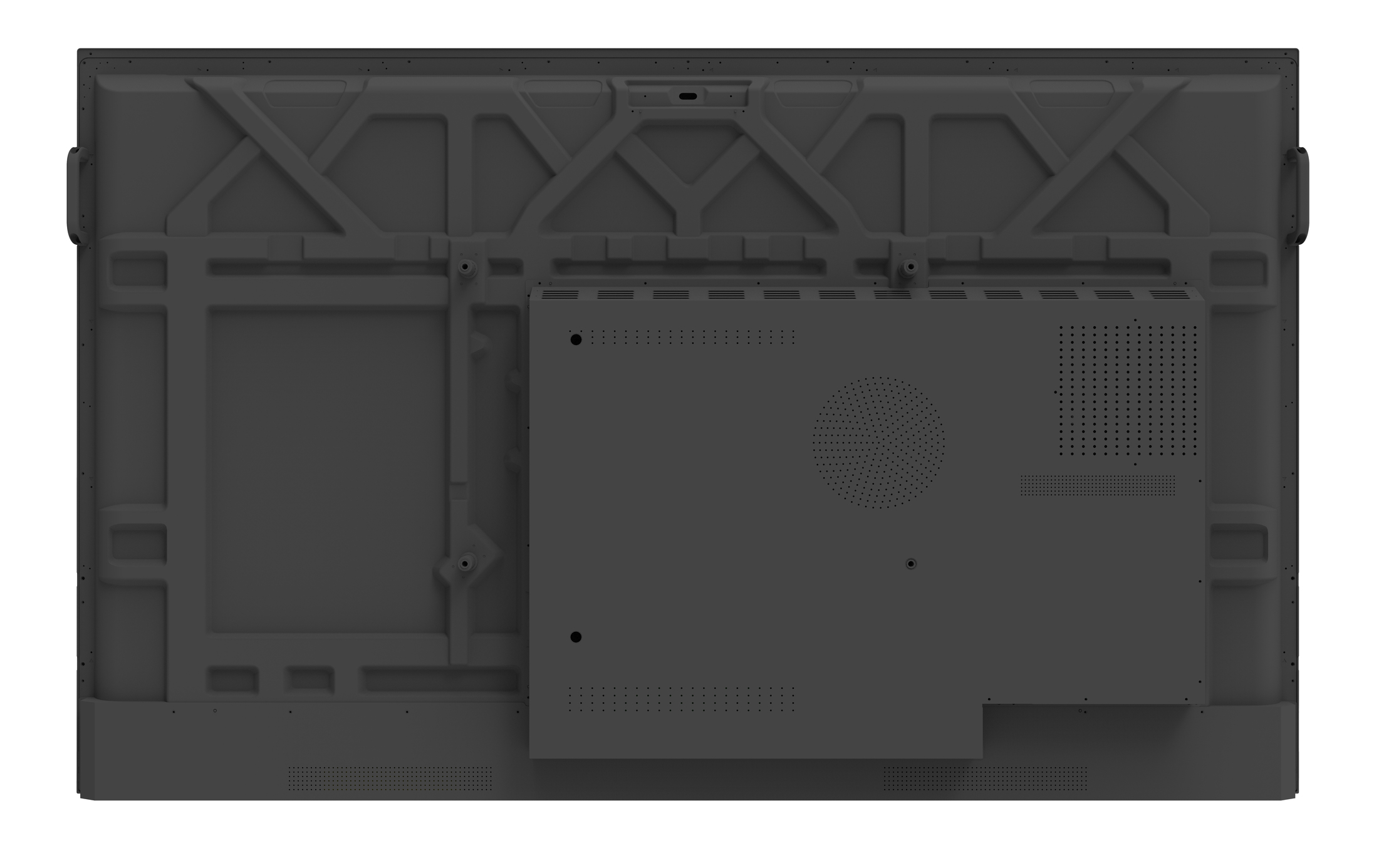

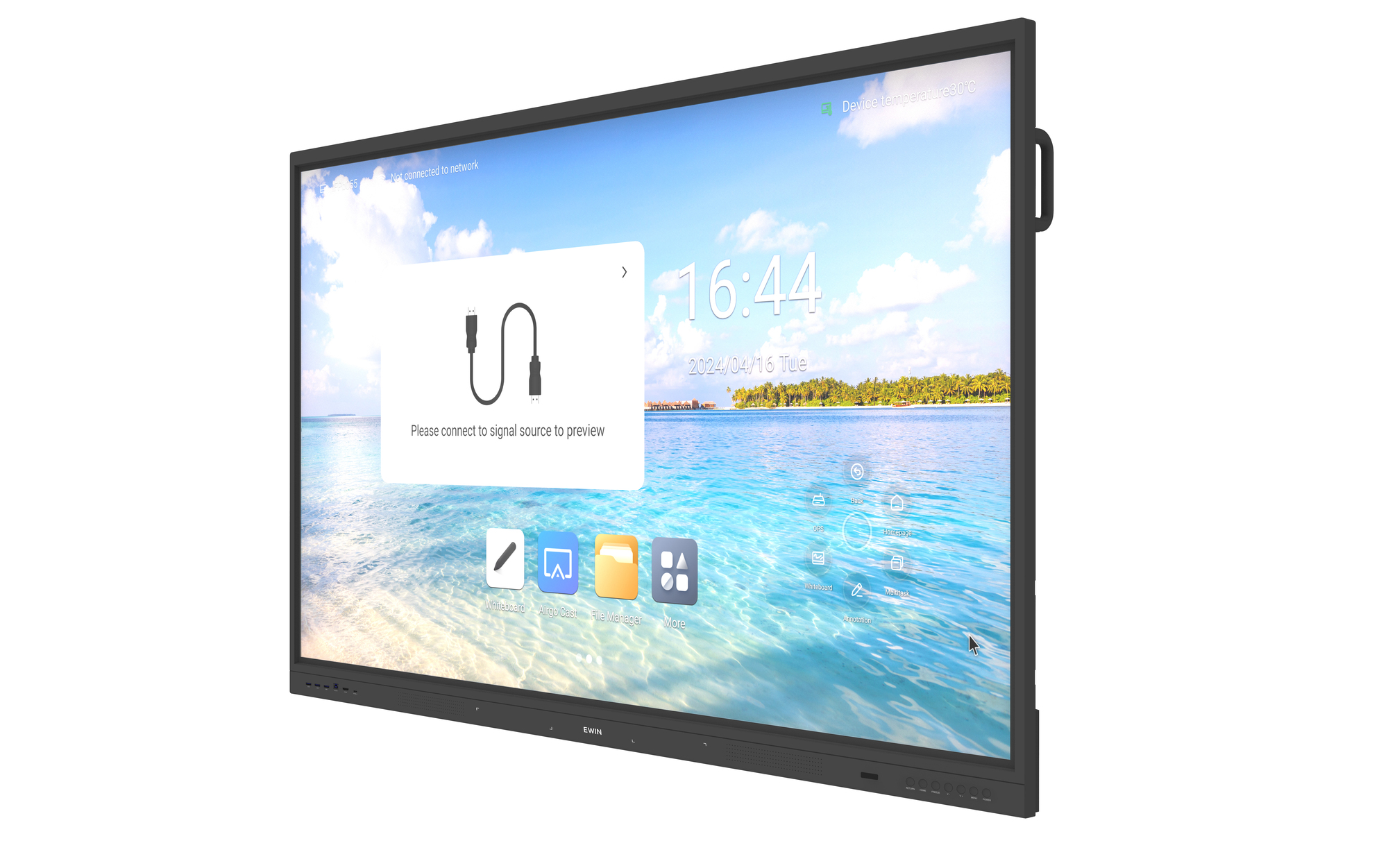

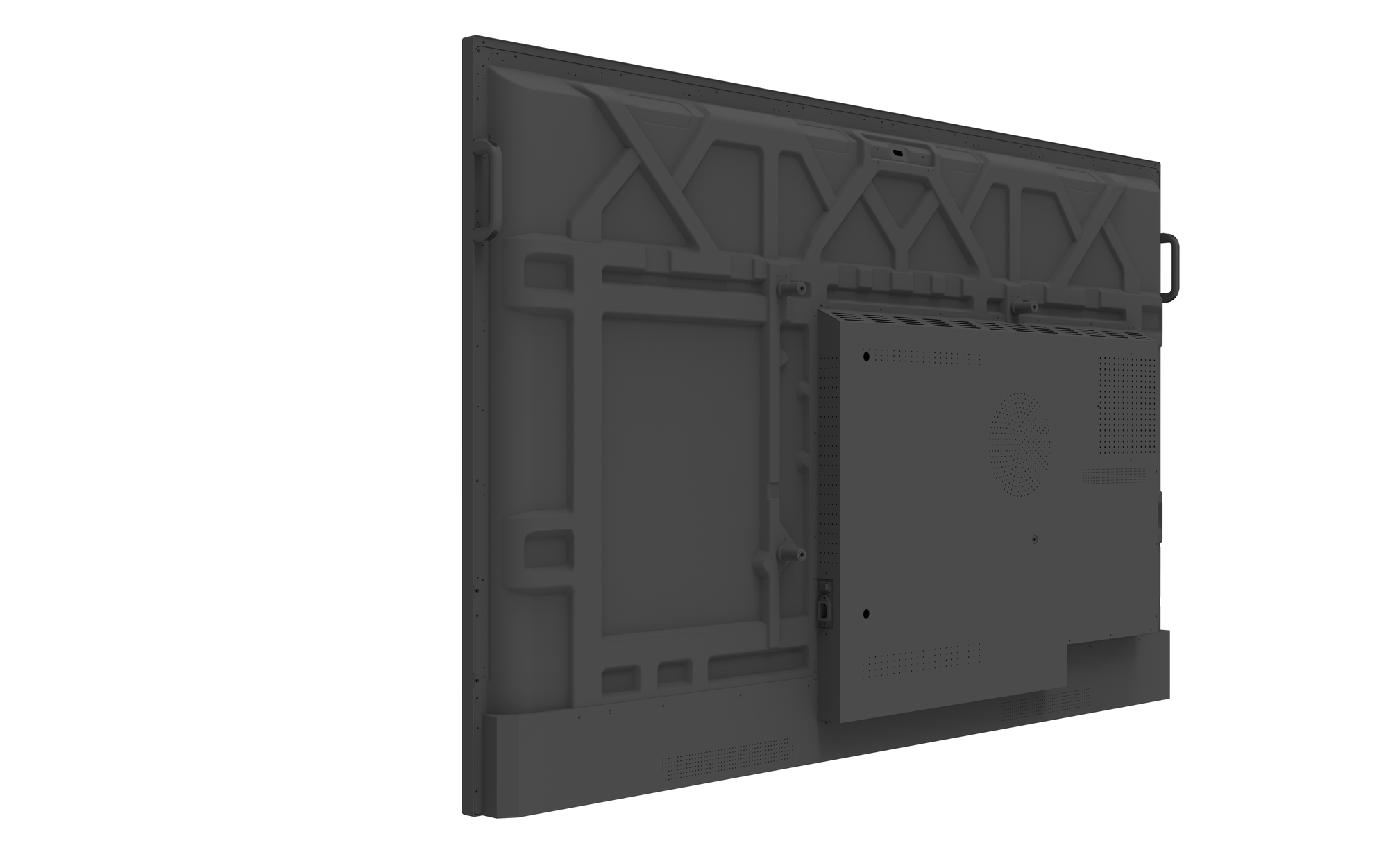

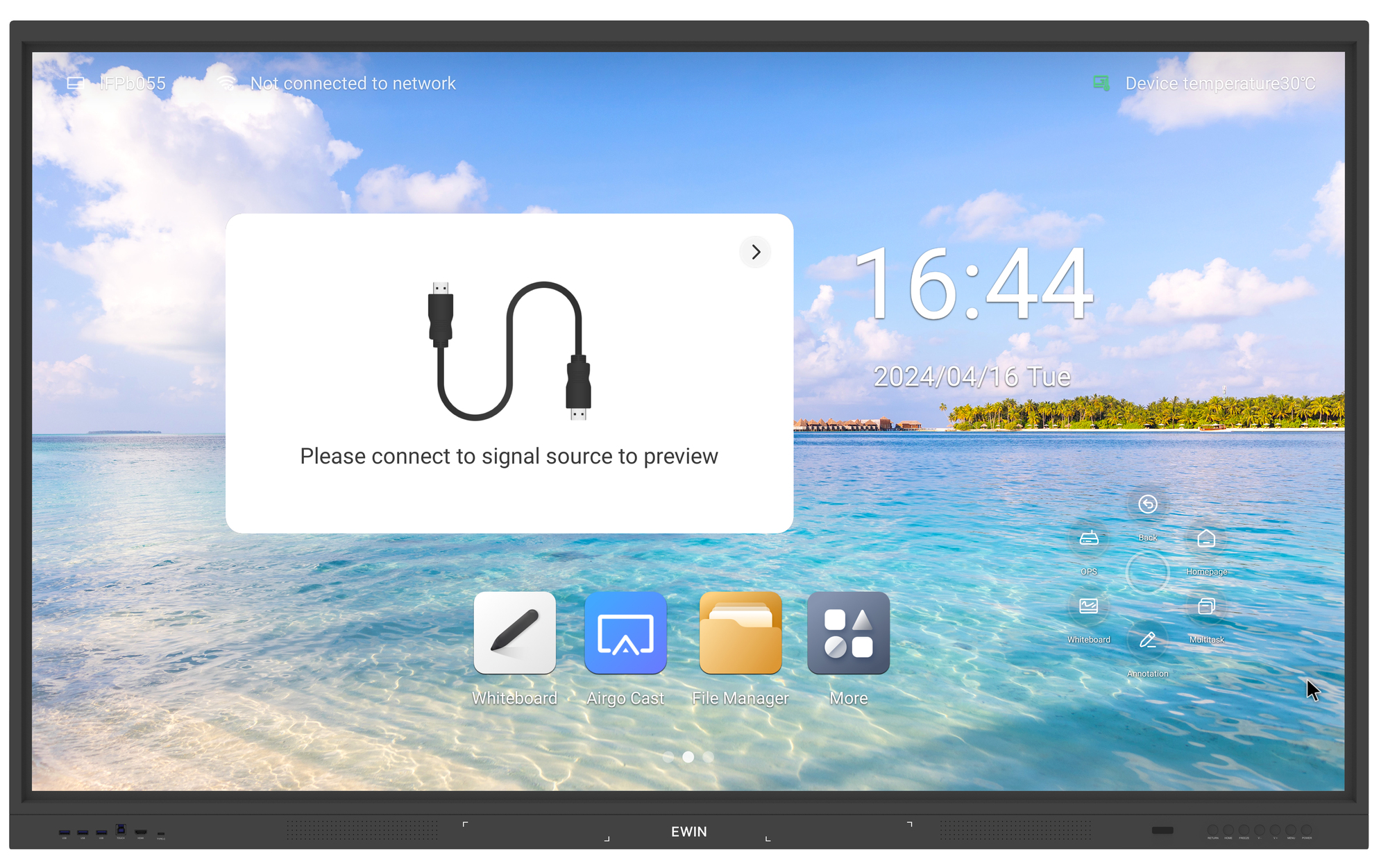

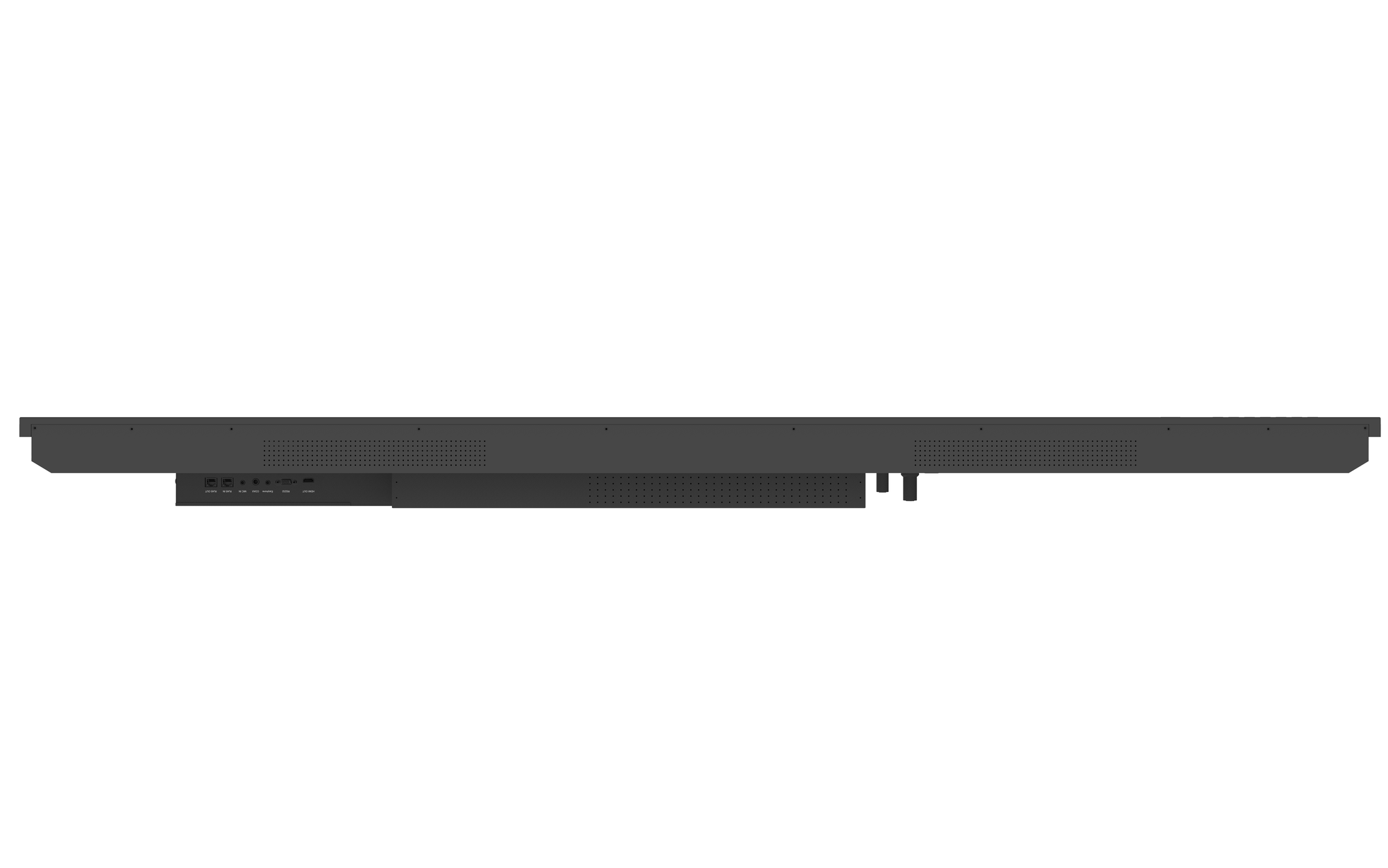

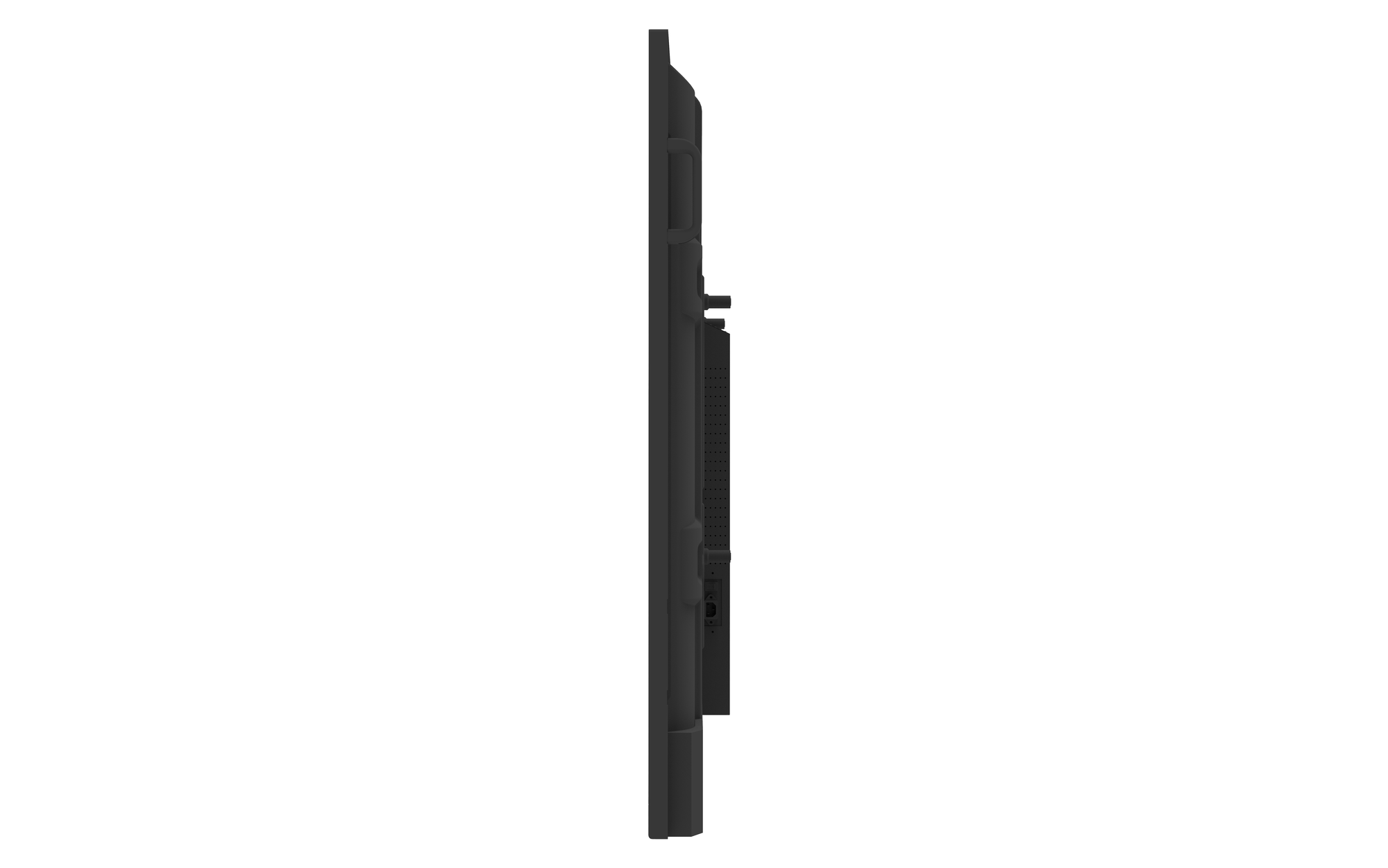

Interactive Flat Panel
• Combines touch writing, wireless screen casting, document presentation, video conference, teaching, and other capabilities, meeting the needs of various application scenarios.
• 4K commercial-grade LCD screen for comfortable viewing and longer durability. The AG coating provides anti-glare protection, ensuring clear visibility even in bright environments.
• 7-level Mohs hardness tempered glass, is scratch-resistant and requires no deliberate protection.
143225341f90d5fdb-d
143225341c4e46923-6
1432255792eaf122d-8
143229333549c5c7f-2
14323028690fc5b43-5
143231838c780ce9-e
1432316139481d714-d
143234577453561ec-1
14323679315a34833-7
143225341f90d5fdb-d
143225341c4e46923-6
1432255792eaf122d-8
143229333549c5c7f-2
14323028690fc5b43-5
143231838c780ce9-e
1432316139481d714-d
143234577453561ec-1
14323679315a34833-7

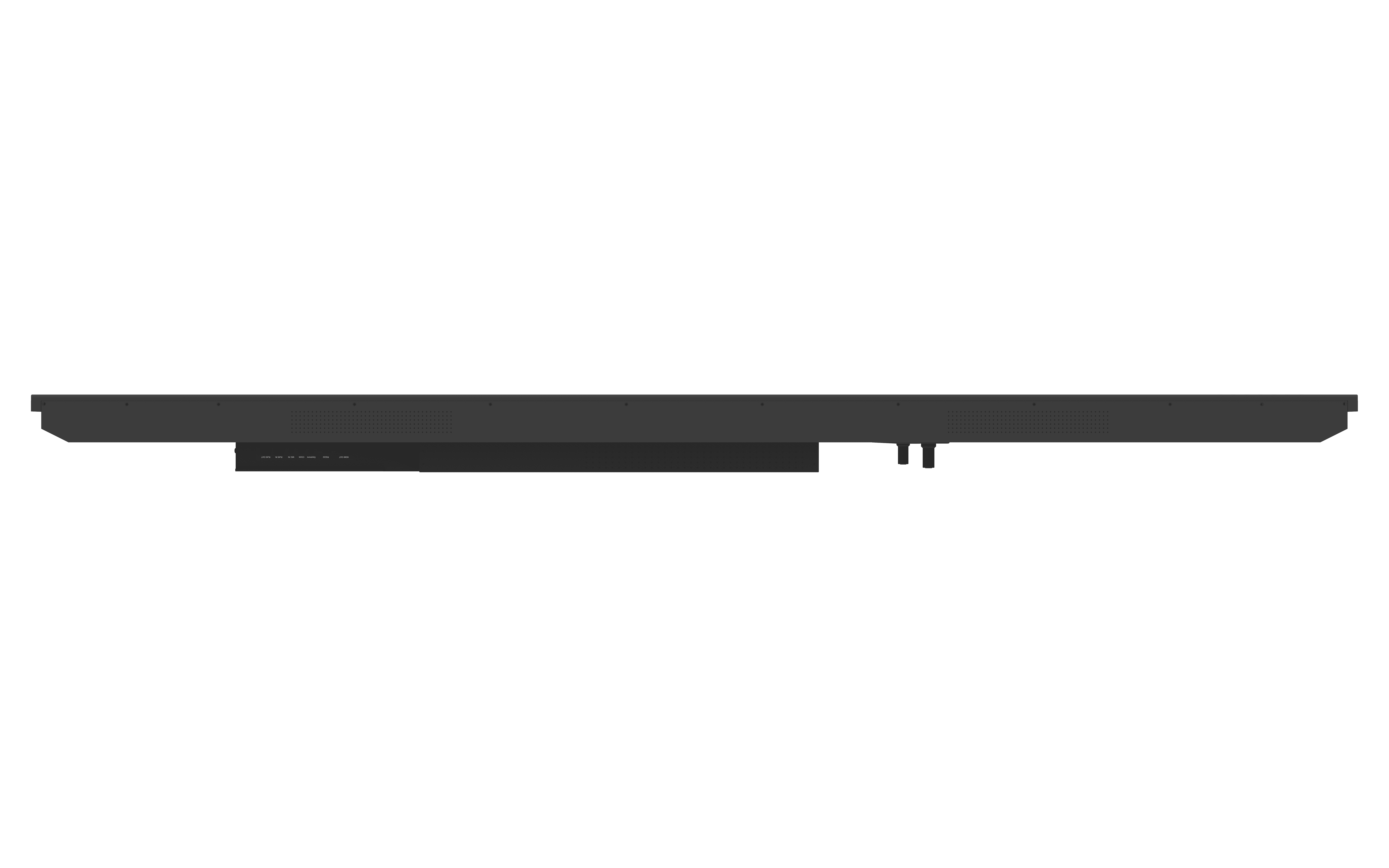

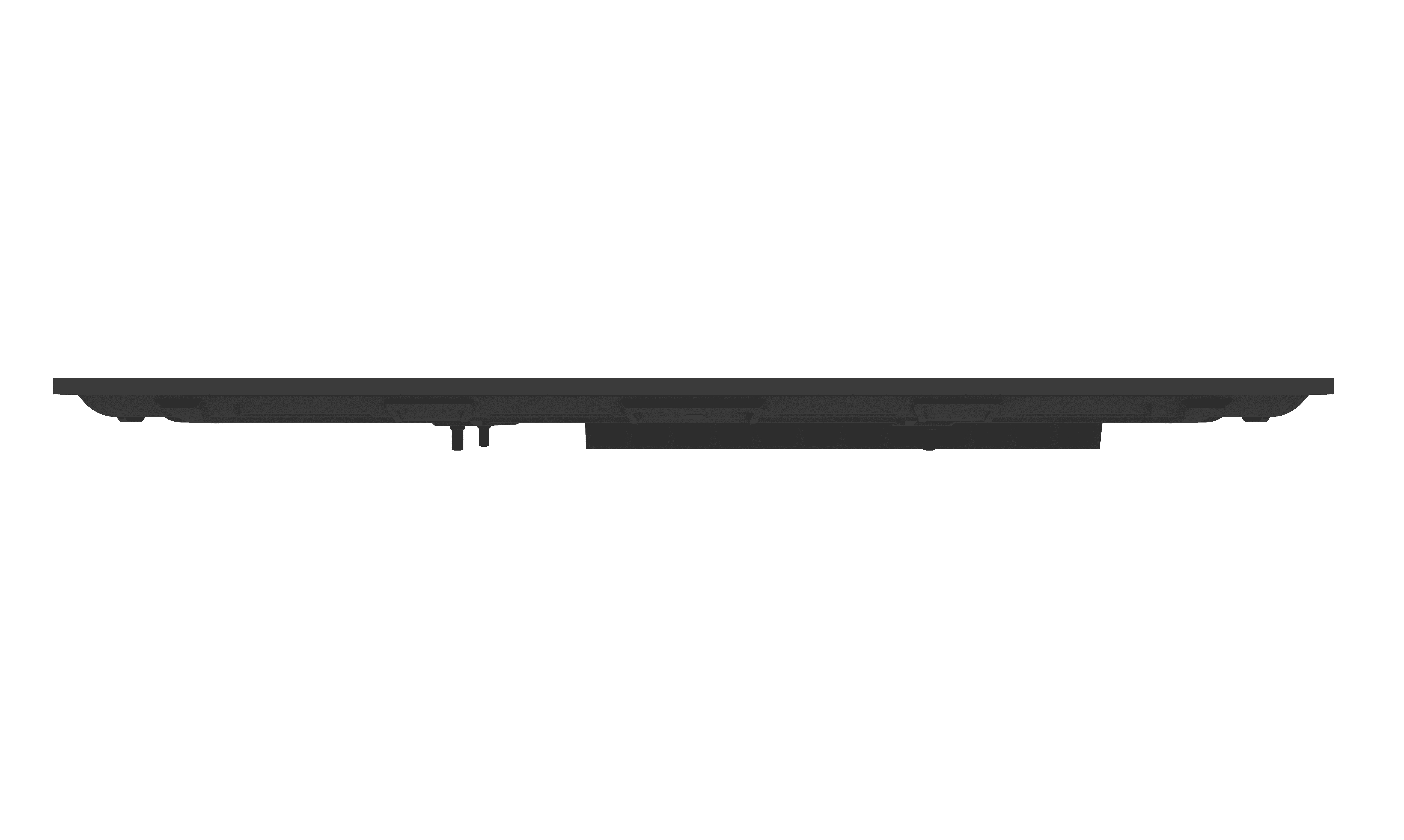

Interactive Flat Panel
• Combines touch writing, wireless screen casting, document presentation, video conference, teaching, and other capabilities, meeting the needs of various application scenarios.
• 4K commercial-grade LCD screen for comfortable viewing and longer durability. The AG coating provides anti-glare protection, ensuring clear visibility even in bright environments.
• 7-level Mohs hardness tempered glass, is scratch-resistant and requires no deliberate protection
143155113bc997bec-c
14315534384ab7510-d
143158419c9d1013e-9
1431589633a68d175-f
143159539b8bc4321-e
143158419cd018b2e-3
143208652e4d7690-3
143155113bc997bec-c
14315534384ab7510-d
143158419c9d1013e-9
1431589633a68d175-f
143159539b8bc4321-e
143158419cd018b2e-3
143208652e4d7690-3

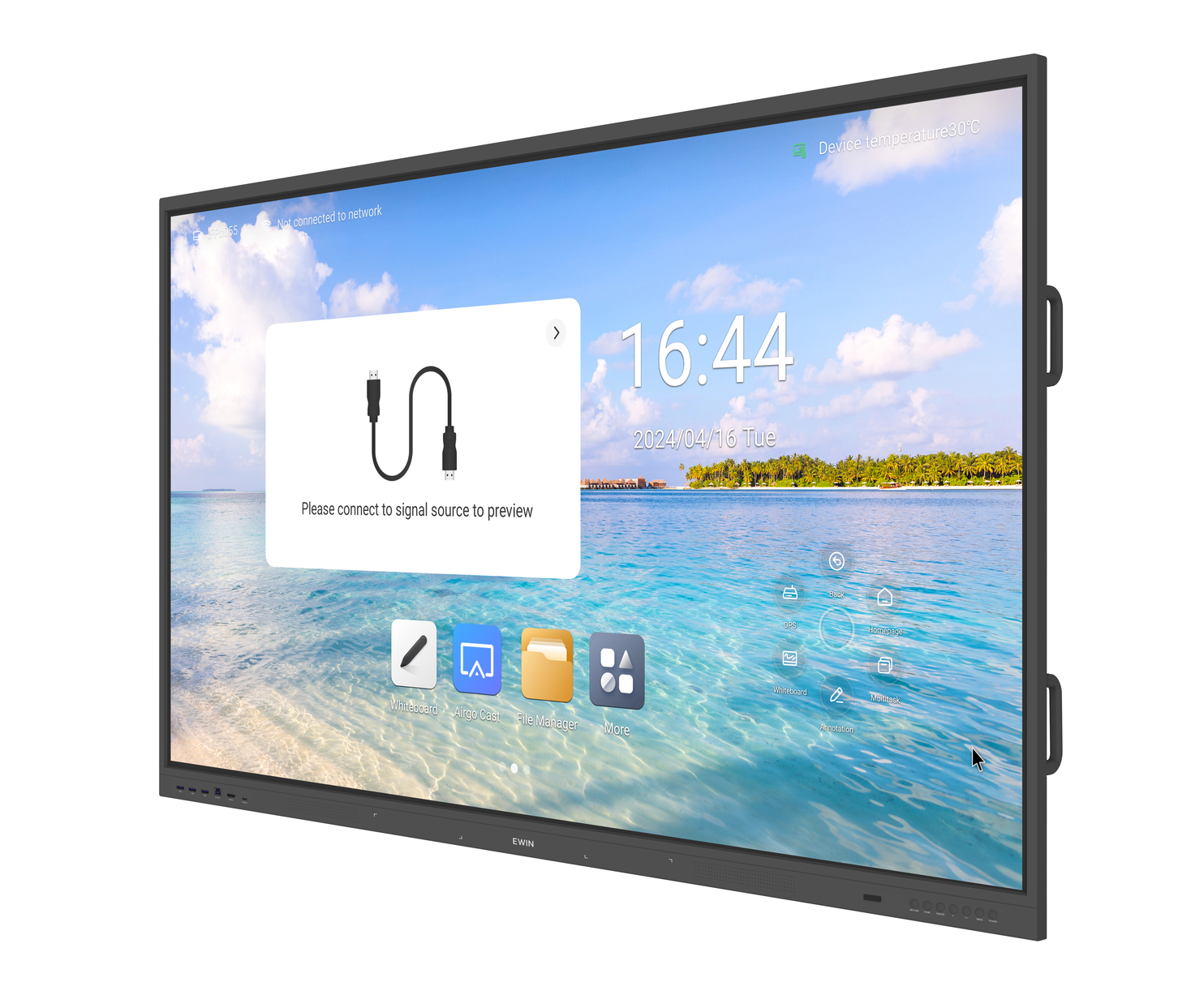

Interactive Flat Panel
• Combines touch writing, wireless screen casting, document presentation, video conference, teaching, and other capabilities, meeting the needs of various application scenarios.
• 4K commercial-grade LCD screen for comfortable viewing and longer durability. The AG coating provides anti-glare protection, ensuring clear visibility even in bright environments.
• 7-level Mohs hardness tempered glass, is scratch-resistant and requires no deliberate protection
14312999345ff5ad-f
14312921d8a8e8bf-a
14312861378287865-e
14312873b365b3e0-2
1431267026f089c88-8
14312615836896581-a
1431242196393844b-4
1431231676241e8ce-b
143122915b8a73db9-d
14312999345ff5ad-f
14312921d8a8e8bf-a
14312861378287865-e
14312873b365b3e0-2
1431267026f089c88-8
14312615836896581-a
1431242196393844b-4
1431231676241e8ce-b
143122915b8a73db9-d

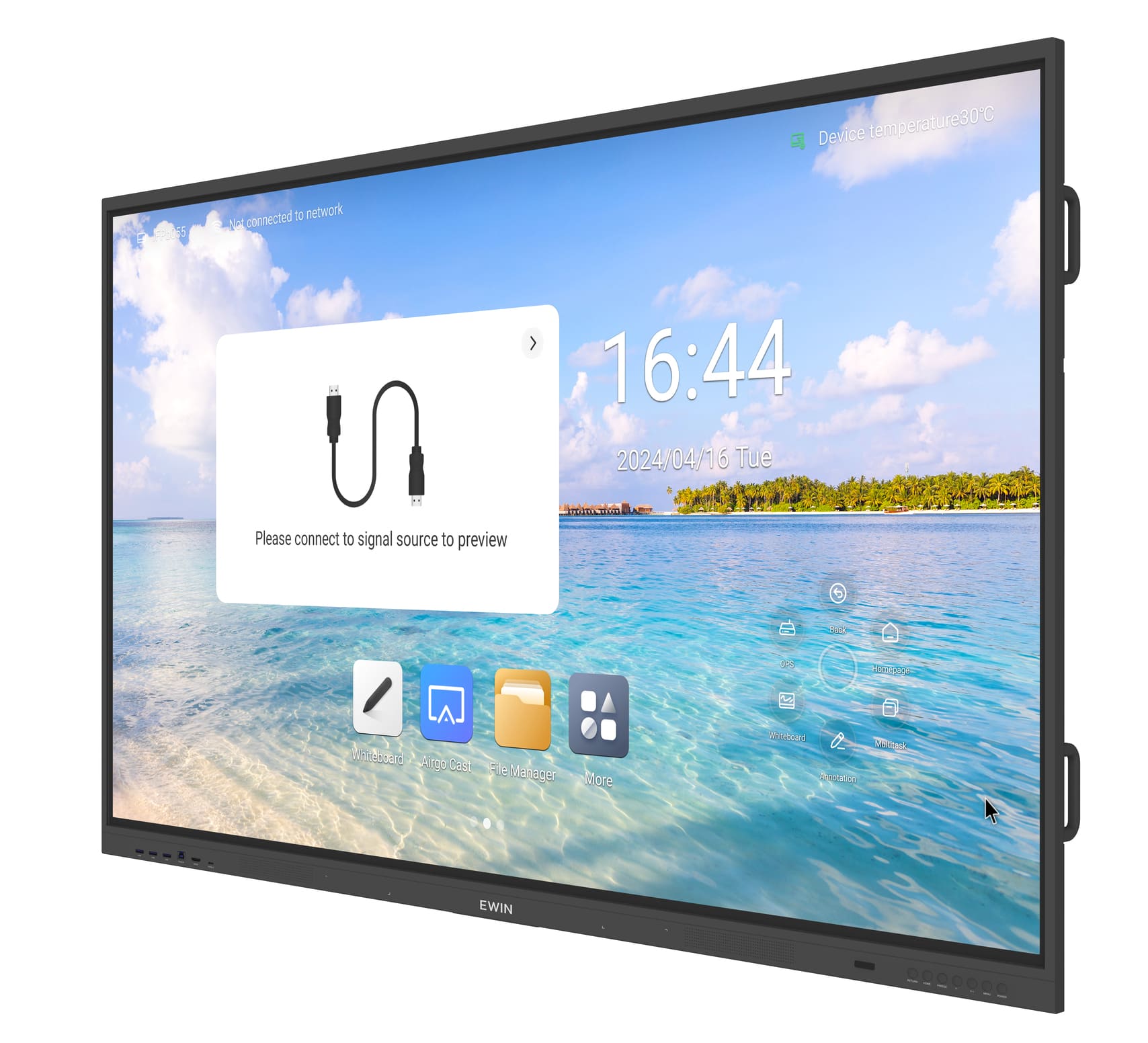

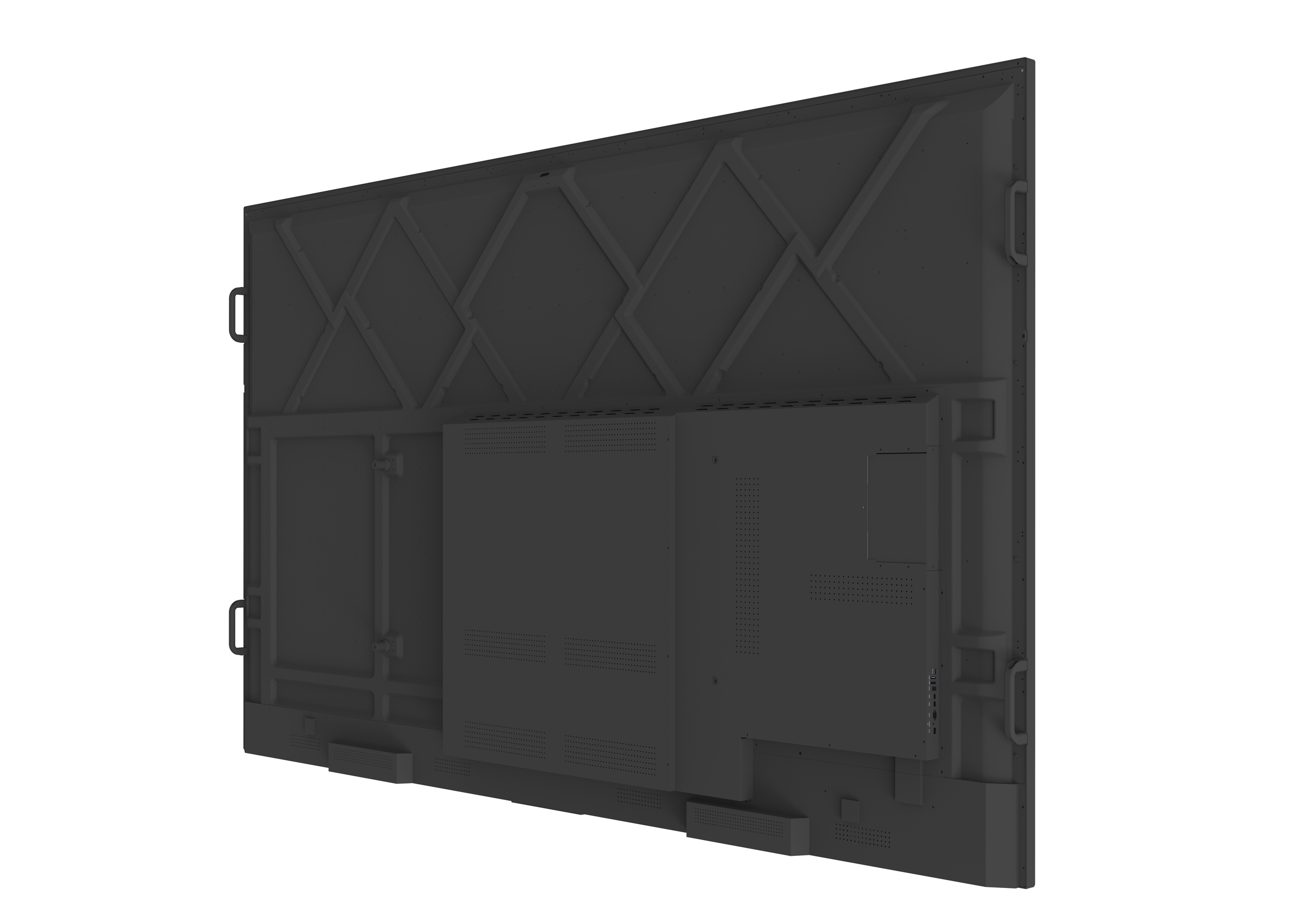

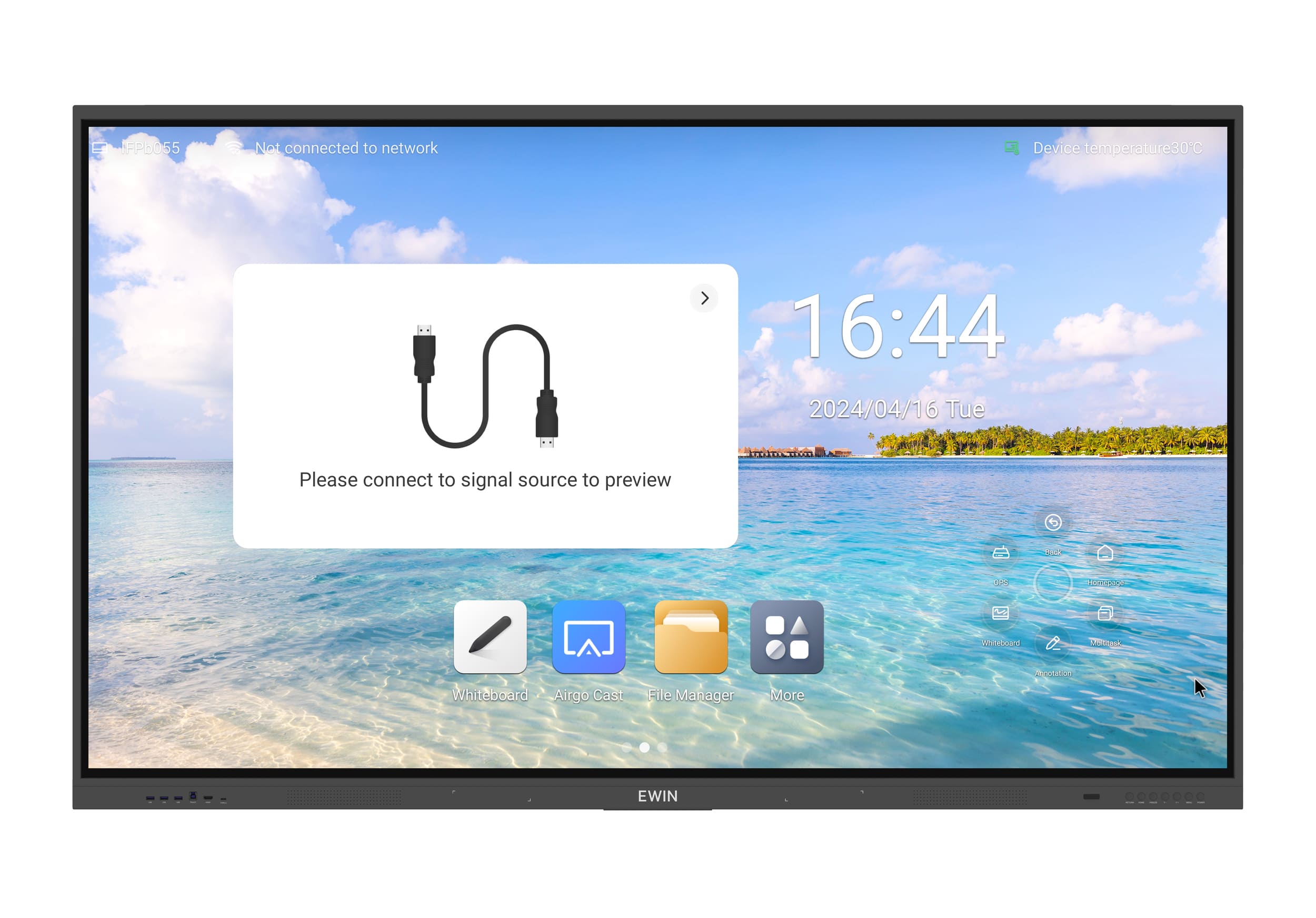

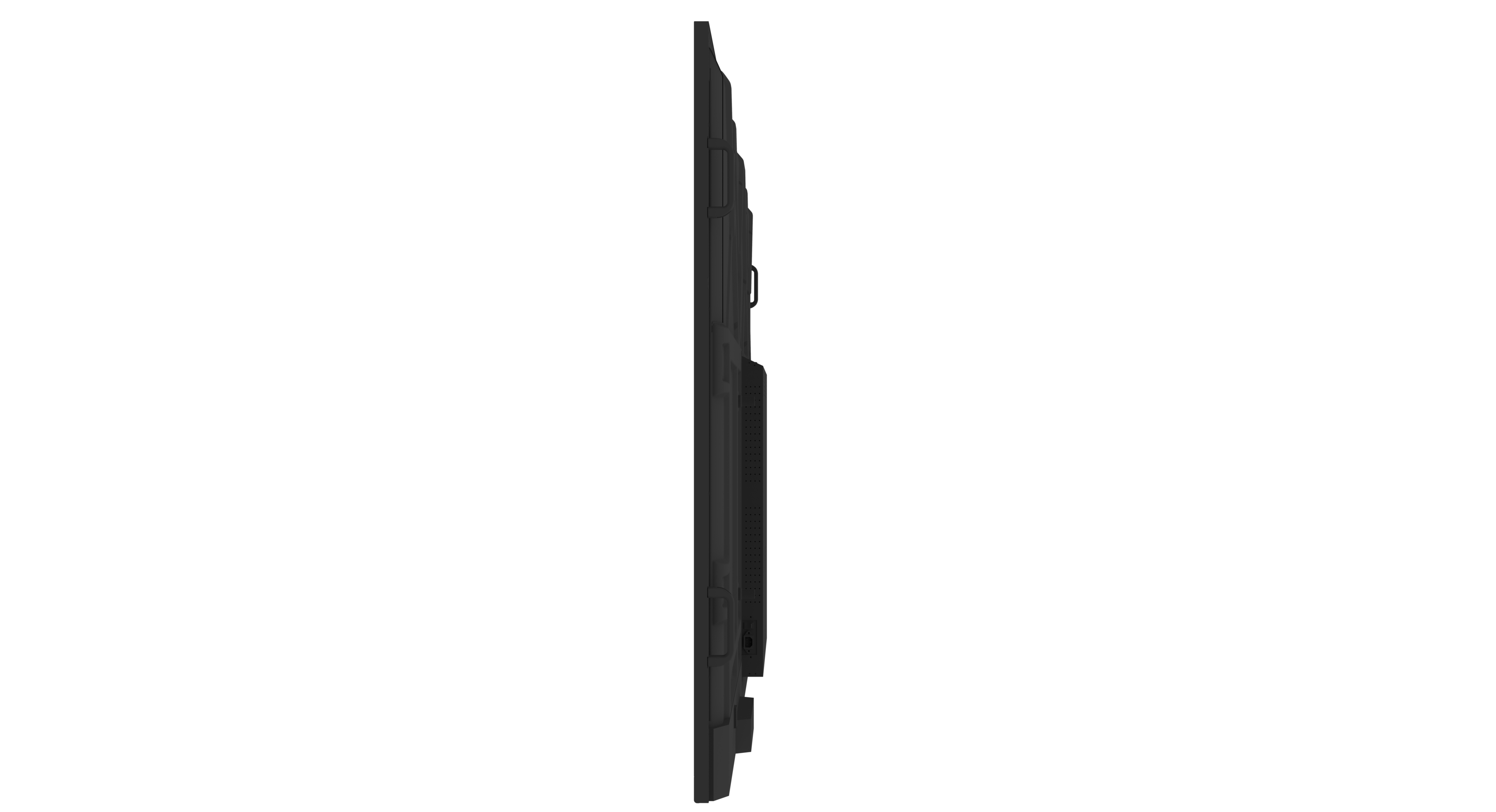

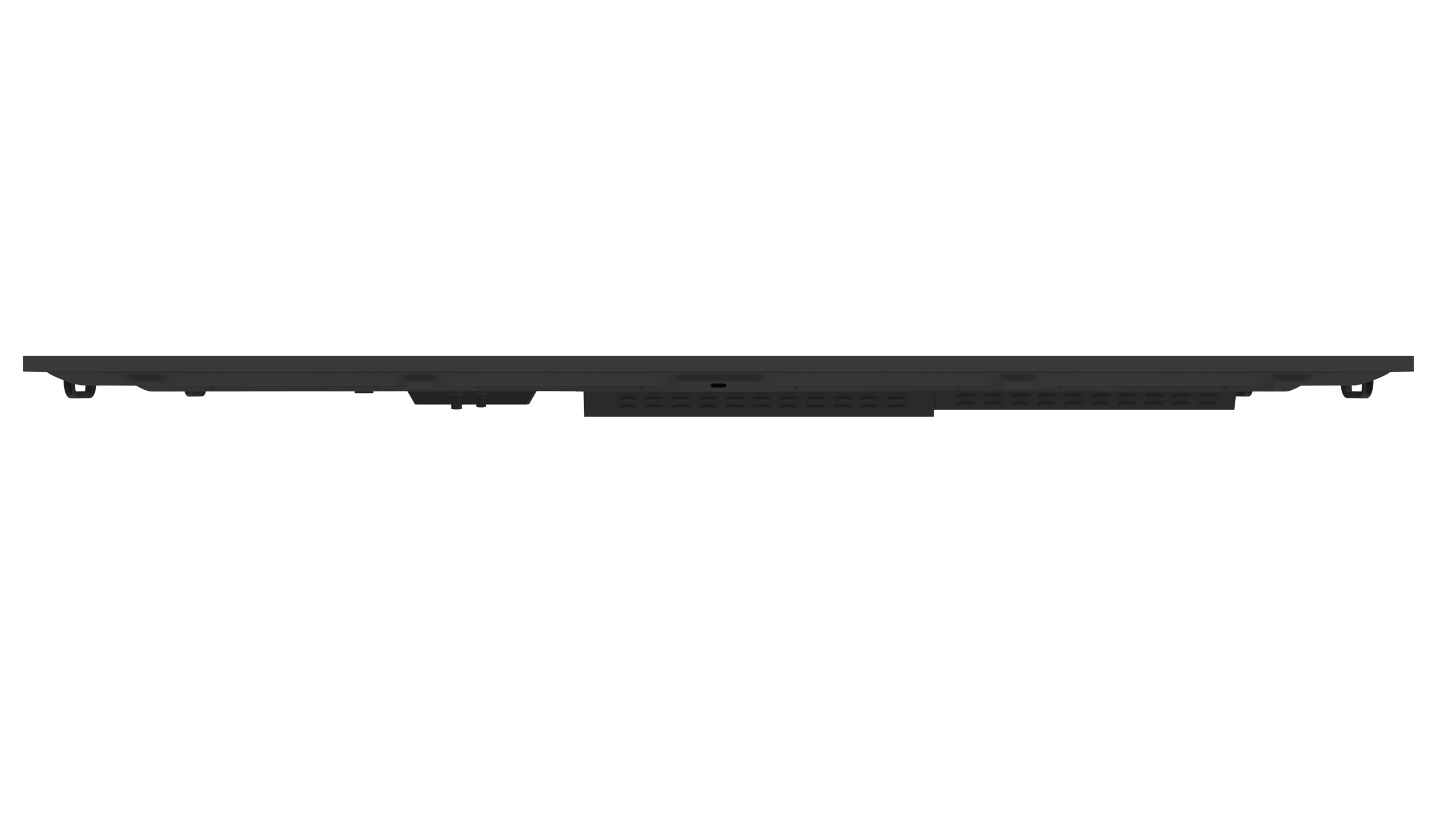

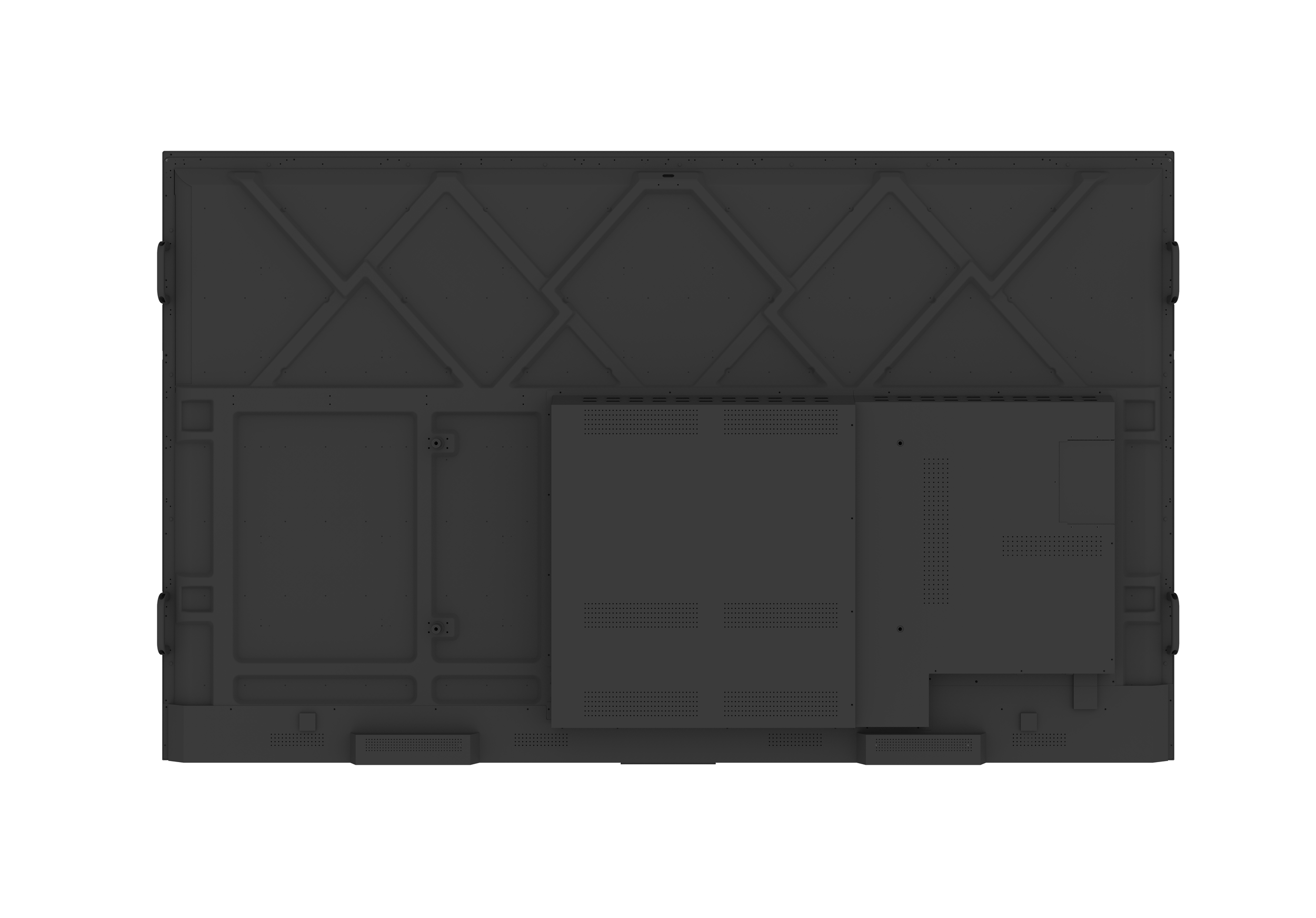

Interactive Flat Panel
• Combines touch writing, wireless screen casting, document presentation, video conference, teaching, and other capabilities, meeting the needs of various application scenarios.
• 4K commercial-grade LCD screen for comfortable viewing and longer durability. The AG coating provides anti-glare protection, ensuring clear visibility even in bright environments.
• 7-level Mohs hardness tempered glass, is scratch-resistant and requires no deliberate protection
Product Parameters
Display
Screen Size (Diagonal)
65inch
Native Resolution
3840x2160
LCD Tech
ADS
Brightness
350nit(Typ.)
Aspect Ratio
16:9
Viewing Angle
89/89/89/89
Contrast Ratio
1200:1
Display Color
1.07B
Response Time
8ms
Operation Time (Hour/Day)
24/7
Life Time (Light Source)
50000hrs
Configuration and Interface
CPU
ARM Octa Core (A55*8 ), 1.2GHz
GPU
ARM Multi Core Mali-G52MP2
RAM/Storage
8G/64G
OS
Android 12
Input
DP IN*1, HDMI*2, Audio IN*1, USB-A*2, TF Card, USB-B Touch*1, VGA*1, Mic IN*1, RS232*1, COAX, RJ45(10/100M)*1
Output
HDMI OUT, RJ45 OUT, LINE OUT*1
Front Connection
HDMI IN*1, TOUCH *1, USB *3, TYPE C*1(15W)
WIFI
Wi-Fi 802.11ac (2.4G&5G); Hotspot 5Ghz
Built-In Speaker
15W×2
Touch Points
40 for windows, 20 for Android
Touch Response Time
<3.3ms
Touch Accuracy
0.5mm(90% Area)
Tempered Glass
4mm with AG Coating
Input Mode
Finger/Opaque objects
Frame Rate
≥300Hz
Transmission Connector
USB 2.0
Operating System
Windows/Linux/Mac/Android
Physical
Set Outline Dimension
1485.2×916.61×87.9mm
Package Dimension
1576×980×200mm
Set Weight
42±1kg
Packed Weight
56.5±1kg
VESA Mounting Interface
500×400
Accessories
Controller*1, Power cable*1, User Manual*1, Pen*2
Product Parameters
Display
Screen Size (Diagonal)
75inch
Native Resolution
3840x2160
LCD Tech
ADS
Brightness
350nit(Typ.)
Aspect Ratio
16:9
Viewing Angle
89/89/89/89
Contrast Ratio
1200:1
Display Color
1.07B
Response Time
8ms
Operation Time (Hour/Day)
24/7
Life Time (Light Source)
50000hrs
Configuration and Interface
CPU
ARM Octa Core (A55*8 ), 1.2GHz
GPU
ARM Multi Core Mali-G52MP2
RAM/Storage
8G/64G
OS
Android 12
Input
DP IN*1, HDMI*2, Audio IN*1, USB-A*2, TF Card, USB-B Touch*1, VGA*1, Mic IN*1, RS232*1, COAX, RJ45(10/100M)*1
Output
HDMI OUT, RJ45 OUT, LINE OUT*1
Front Connection
HDMI IN*1, TOUCH *1, USB *3, TYPE C*1(15W)
WIFI
Wi-Fi 802.11ac (2.4G&5G); Hotspot 5Ghz
Built-In Speaker
15W×2
Touch Points
40 for windows, 20 for Android
Touch Response Time
<3.3ms
Touch Accuracy
0.5mm(90% Area)
Tempered Glass
4mm with AG Coating
Input Mode
Finger/Opaque objects
Frame Rate
≥300Hz
Transmission Connector
USB 2.0
Operating System
Windows/Linux/Mac/Android
Physical
Set Outline Dimension
1707.52×1041.93×88.1mm
Package Dimension
1785×1125×200mm
Set Weight
54±1kg
Packed Weight
69±1kg
VESA Mounting Interface
600×400
Accessories
Controller*1, Power cable*1, User Manual*1, Pen*2
Product Parameters
Display
Screen Size (Diagonal)
86inch
Native Resolution
3840x2160
LCD Tech
ADS
Brightness
350nit(Typ.)
Aspect Ratio
16:9
Viewing Angle
89/89/89/89
Contrast Ratio
1200:1
Display Color
1.07B
Response Time
8ms
Operation Time (Hour/Day)
24/7
Life Time (Light Source)
50000hrs
Configuration and Interface
CPU
ARM Octa Core (A55*8 ), 1.2GHz
GPU
ARM Multi Core Mali-G52MP2
RAM/Storage
8G/64G
OS
Android 12
Input
DP IN*1, HDMI*2, Audio IN*1, USB-A*2, TF Card, USB-B Touch*1, VGA*1, Mic IN*1, RS232*1, COAX, RJ45(10/100M)*1
Output
HDMI OUT, RJ45 OUT, LINE OUT*1
Front Connection
HDMI IN*1, TOUCH *1, USB *3, TYPE C*1(15W)
WIFI
Wi-Fi 802.11ac (2.4G&5G); Hotspot 5Ghz
Built-In Speaker
15W×2
Touch Points
40 for windows, 20 for Android
Touch Response Time
<3.3ms
Touch Accuracy
0.5mm(90% Area)
Tempered Glass
4mm with AG Coating
Input Mode
Finger/Opaque objects
Frame Rate
≥300Hz
Transmission Connector
USB 2.0
Operating System
Windows/Linux/Mac/Android
Physical
Set Outline Dimension
1953.2×1180.02×88.1mm
Package Dimension
2040×1260×200mm
Set Weight
69±1kg
Packed Weight
83.8±1kg
VESA Mounting Interface
800×400
Accessories
Controller*1, Power cable*1, User Manual*1, Pen*2
Product Parameters
Display
Screen Size (Diagonal)
98inch
Native Resolution
3840x2160
LCD Tech
ADS
Brightness
350nit(Typ.)
Aspect Ratio
16:9
Viewing Angle
89/89/89/89
Contrast Ratio
1200:1
Display Color
1.07B
Response Time
8ms
Operation Time (Hour/Day)
24/7
Life Time (Light Source)
50000hrs
Configuration and Interface
CPU
ARM Octa Core (A55*8 ), 1.2GHz
GPU
ARM Multi Core Mali-G52MP2
RAM/Storage
8G/64G
OS
Android 12
Input
DP IN*1, HDMI*2, Audio IN*1, USB-A*2, TF Card, USB-B Touch*1, VGA*1, Mic IN*1, RS232*1, COAX, RJ45(10/100M)*1
Output
HDMI OUT, RJ45 OUT, LINE OUT*1
Front Connection
HDMI IN*1, TOUCH *1, USB *3, TYPE C*1(15W)
WIFI
Wi-Fi 802.11ac (2.4G&5G); Hotspot 5Ghz
Built-In Speaker
15W×2
Touch Points
40 for windows, 20 for Android
Touch Response Time
<3.3ms
Touch Accuracy
0.5mm(90% Area)
Tempered Glass
4mm with AG Coating
Input Mode
Finger/Opaque objects
Frame Rate
≥300Hz
Transmission Connector
USB 2.0
Operating System
Windows/Linux/Mac/Android
Physical
Set Outline Dimension
2222.40x1332.22x106.06mm
Package Dimension
2306x1520x200mm
Set Weight
106±1kg
Packed Weight
121±1kg
VESA Mounting Interface
1000×400
Accessories
Controller*1, Power cable*1, User Manual*1, Pen *2
